architecture commercial yachats inn master plan for expansion
Yachats, Oregon - 1995



THE PROJECT
To investigate possible alternatives for a Master Plan of the expansion of the existing Yachats Inn.

THE SITE
A large, gently sloping site located between highway 101 and the Pacific Ocean.

THE CLIENT
Paul and Kathy Plunk
Yachats, Oregon



unless noted otherwise all images copyright d. holmes chamberlin jr architect llc


The Master Plans for 6 and 8-unit Buildings
The Master Plan called for using standard, repeatable, 6 to 8-unit buildings, that could be added initially behind the existing motel.
After new units are established, master plan should provide for additional 6 to 8-unit buildings to replace the existing motel.
Units should have ocean views where ever possible, and feature wood stoves and kitchenettes.



Master Plan for 6-unit buildings, Yachats Inn Expansion, Yachats, Oregon, 1995.
Dotted lines indicate locations of existing motel.

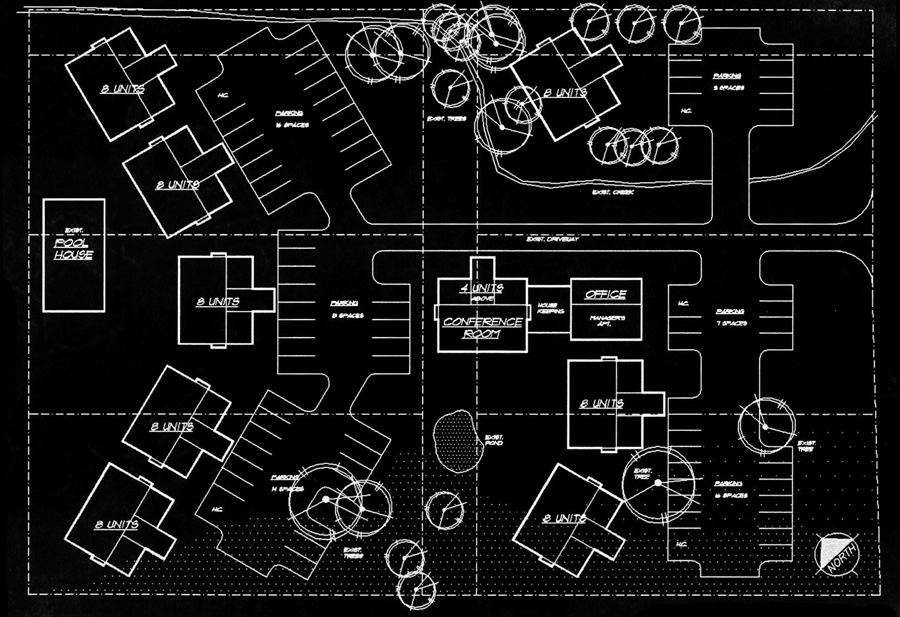

Master Plan for 8-unit buildings, Yachats Inn Expansion, Yachats, Oregon, 1995.



Typical 8-Unit Bbuildings

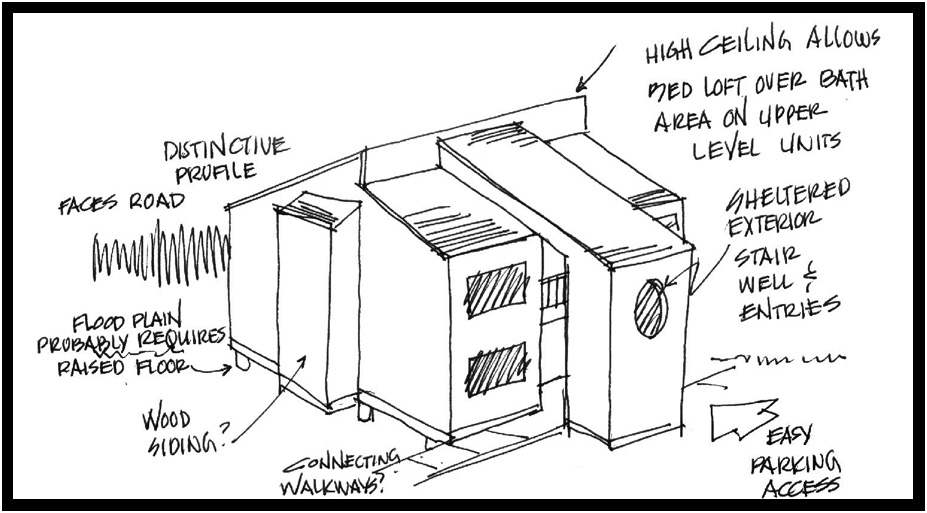

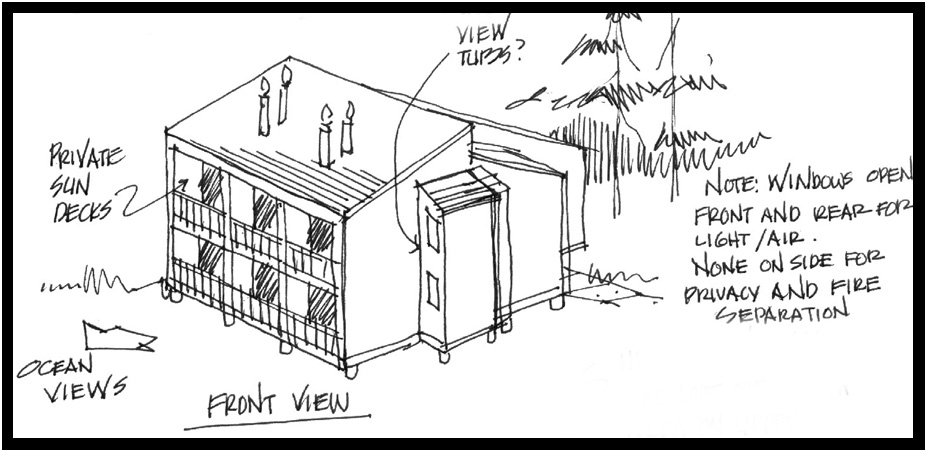

Theme development sketch for 6 to 8-unit buildings, Yachats Inn Expansion, Yachats, Oregon, 1995.

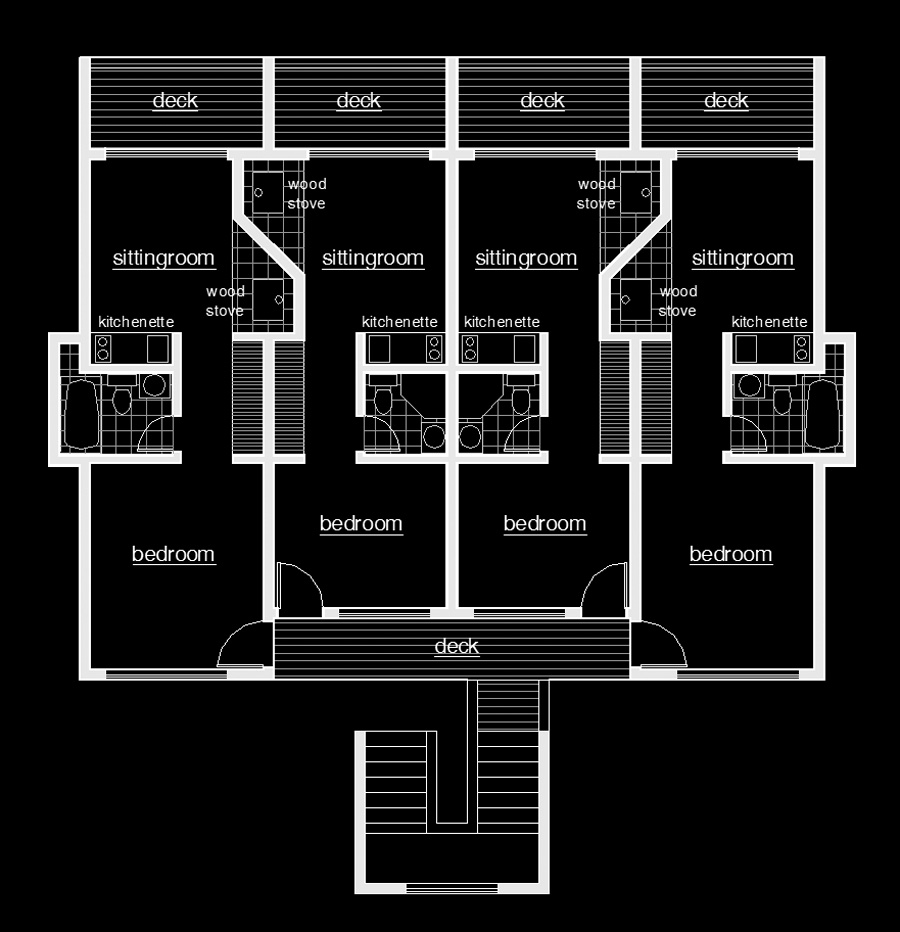

One typical Floor Plan for an 8-unit building, Yachats Inn Expansion, Yachats, Oregon, 1995
